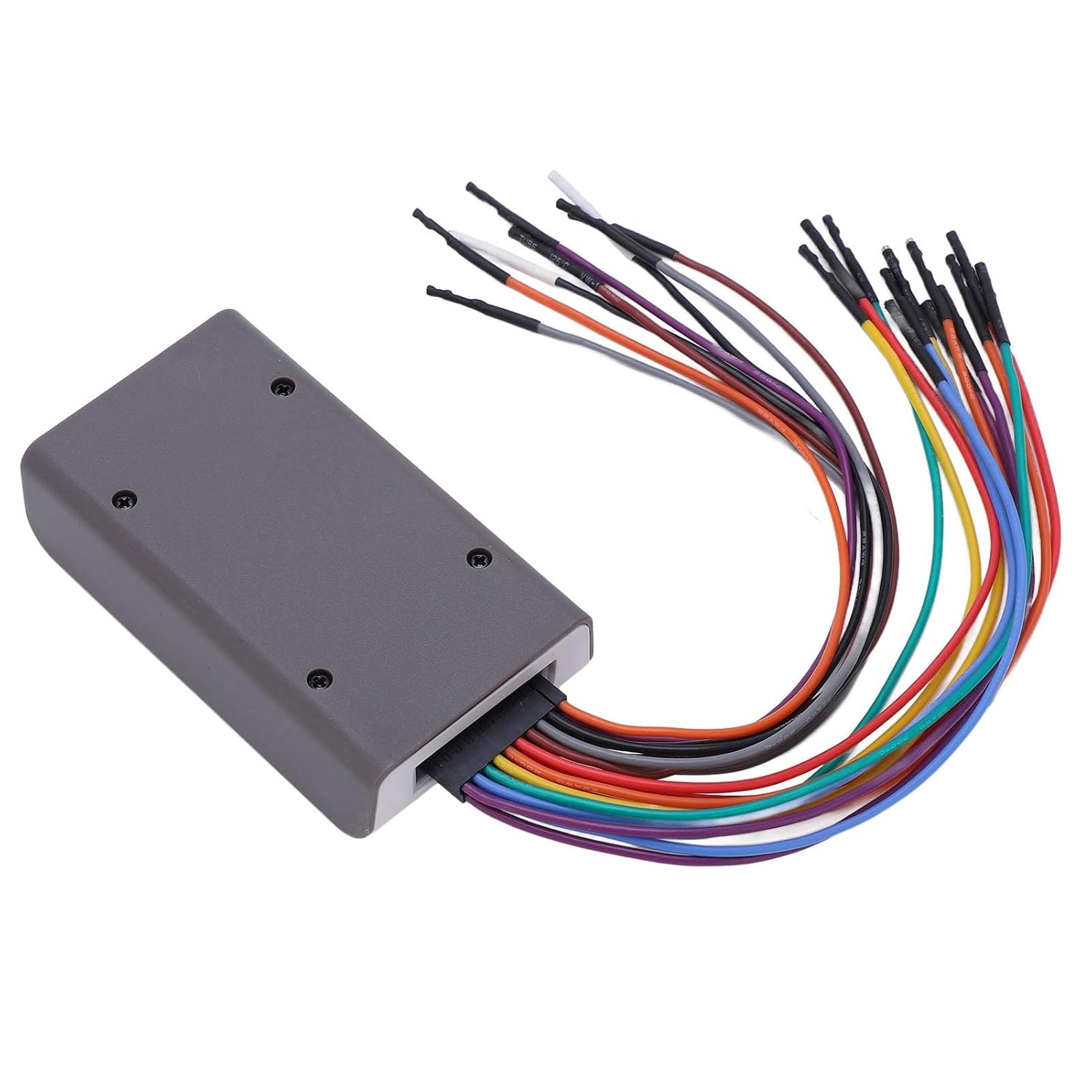

Fafeicy USB Logic Analyzer 16 Channel 200M Sampling Rate Adjustable Threshold LA2016 for Electrical Testing

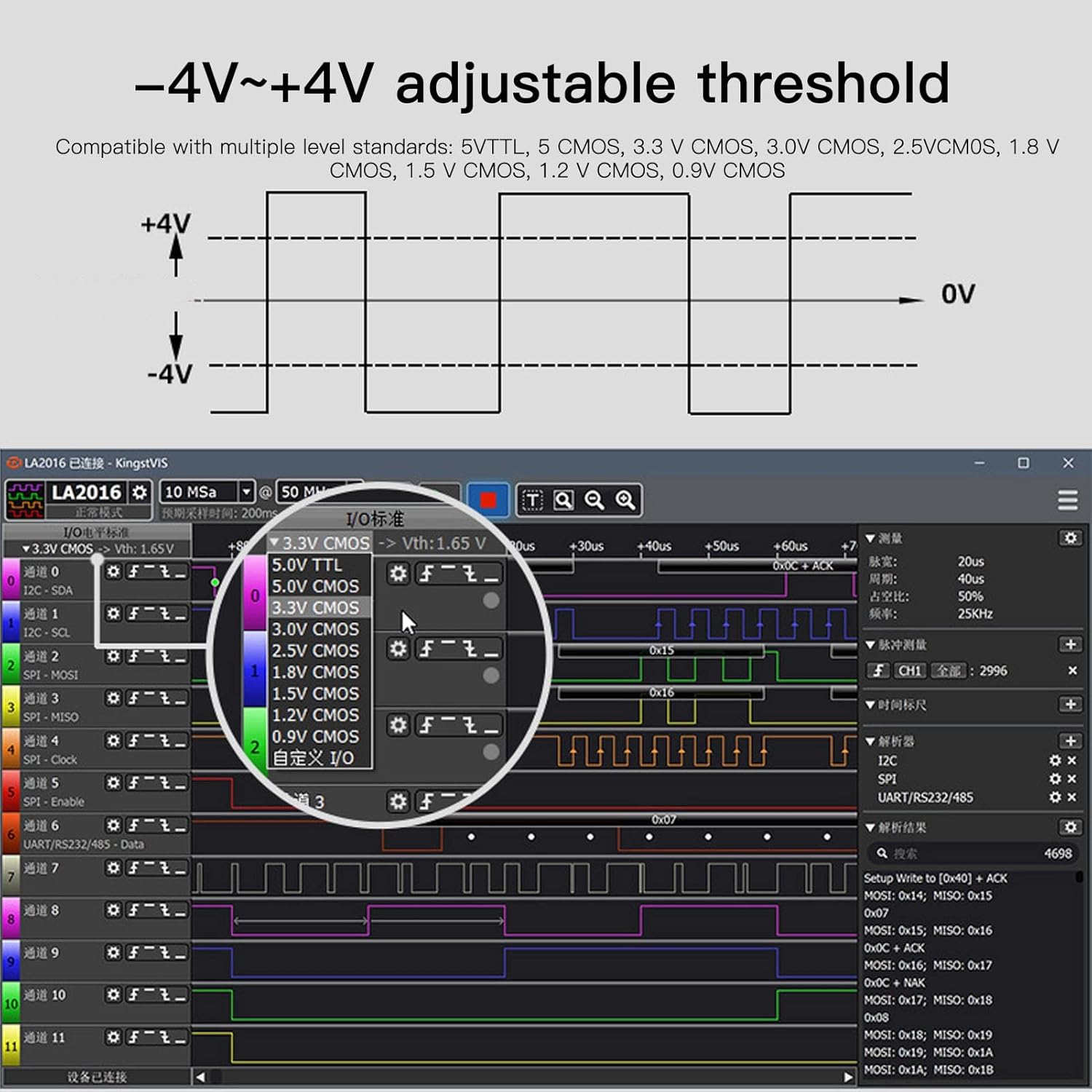

Spec: Item Type: Logic Analyzer Model Number: LA2016 Number of Channels: 16 Supported Modes: Normal mode (the data is collected and then transferred to the computer, the sampling rate is higher); Streaming mode (the collected data is transmitted to the computer at the same time, the sampling time is longer) Maximum Sampling Rate: Normal Mode: 200M (16 channels); Streaming Mode: 100M (3 channels), 50M (6 channels), 20M (16 channels) Highest Signal Frequency Can Be Collected: 40MHz Minimum Captureable Pulse Width: 12.5ns Built in Hardware Memory Capacity: 1Gbits Maximum Hardware Storage Depth (ensure the achievable sampling depth): 50M Maximum Compression Sampling Depth(not guaranteed to the sampling depth): 10G (lossless compression sampling mode, effectively improve the depth when collecting lower frequency signals) Maximum Sampling Depth In Streaming Mode: 100G (the actual depth may be limited by the memory capacity of the computer, each level transition of each channel needs to occupy 5Bytes of memory) Input Voltage Range: -50V~+50V Equivalent Input Impedance: 200KΩ, 15pf Threshold Voltage: Adjustable Range: -4V~+4V, Adjustment Step: 0.01V Interface Type: USB2.0 Standby Current: 130mA Maximum Operating Current: 280mA Package List: 1 x Host 1 x 9P Line 1 x 2P Line 20 x Test Hook 1 x USB Cable 1 x User Manual Note: Match appropriate model threshold range before use.

• [Intuitive Actuator Settings] Features a concise Actuator setting interface with various Actuator conditions for precise signal detection.
• [Linked Analysis ] The waveform window and the analysis result window can be linked, making it easy to find and analyze data in various ways.
• [Data Export Options] Sampling data can be exported to various formats, allowing for easy viewing and further analysis with different software tools.
• [Wide Compatibility] Compatible with a range of level standards, making it suitable for various testing environments and applications.
• [Multiple Data Formats] Supports binary, decimal, hexadecimal, and ascii data for intuitive observation and analysis.
